Complex Lane Height

Complex Lane Height is used to set or transfer different height values to lanes that overlap a specific area of a road. A Helper Road is used to define the required height and apply it to the selected lanes.

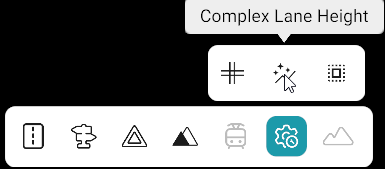

Bottom toolbar: Advanced Tools category active; sub-toolbar with Complex Lane Height tool selected

How to Use

  1. Click Advanced Tool from the toolbar.
  2. Select Complex Lane Height from the sub-toolbar.
  3. Click Add Helper Road.
  4. Open the Create Road tool and create a road.
  5. The created road will be used as the Helper Road and will have a single lane.
  6. Adjust the Helper Road geometry to cover the required area.
  7. Use the Lane Height tool to set the required height for the Helper Road.
  8. Open Advanced Tool again and select the Helper Road.
  9. All lanes covered by the Helper Road will be highlighted in blue.
  10. Left Click to select a lane and Right Click to unselect a lane.
  11. Click Apply from Helper Road.
  12. The Helper Road's height will be applied to the selected overlapping lanes.

Buttons

Button Description
Add Helper Road Adds a road to be used as the Helper Road.
Apply from Helper Road Applies the Helper Road's height to the selected overlapping lanes.
Reset Resets the height values of the lanes.
Clear Selection Removes the selected lanes.
