Validator

The Validator checks your open map (.xodr) before export. It runs four validation bundles — each bundle looks at a different part of map quality — and gives you a PASS or FAIL summary plus detailed reports.

Window menu with Validator Tool selected

How to Use Validator

Method Steps
Validator Tool
  1. Open Window → Validator Tool.
  2. Click OK on the confirmation dialog to start validation.
Validator Tool — confirmation dialog

Validate Map confirmation dialog with OK and Cancel
Save As
  1. Open File → Save As.
  2. Choose a location.
  3. Enable Run Validation.
Save As — Run Validation

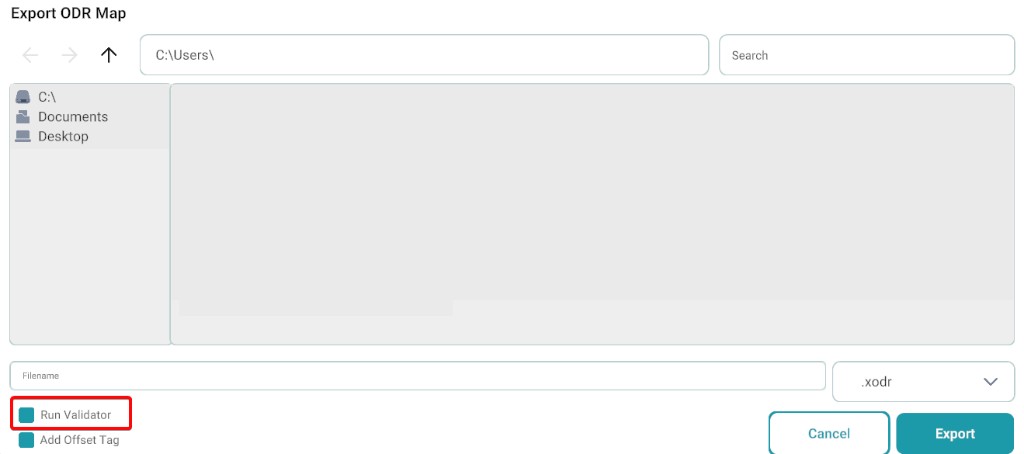

Export ODR Map dialog with Run Validator checkbox enabled
Export Map
  1. Open File → Export → Map.
  2. Choose location and map type.
  3. Enable Run Validation.
Export Map — Run Validation

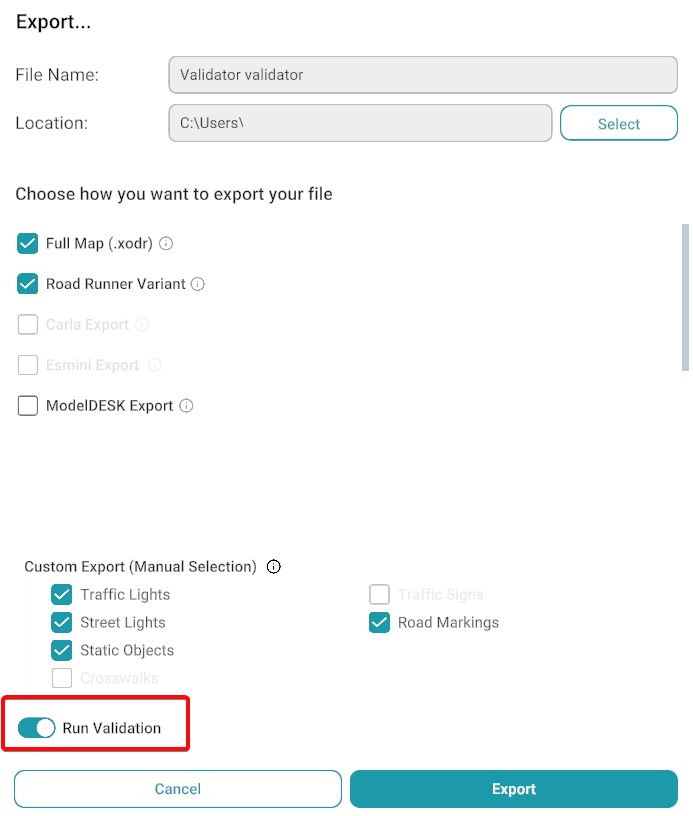

Export Map dialog with Run Validation toggle enabled

Validation Bundles

When validation runs, these four bundles are checked:

Bundle Main focus Pass when
ASAM QC OpenDRIVE Standard OpenDRIVE quality Schema OK, failures within limit
Continuity Smooth geometry along roads No C0/C1 errors
Traffic Simulation Ready for traffic simulation Zero errors
Additional Validation Extra RepliMap data rules Zero errors and warnings

Expand each bundle below for full details.

ASAM QC OpenDRIVE

What it checks

  • Whether the map file is valid OpenDRIVE XML (schema check)
  • Standard ASAM quality rules for OpenDRIVE maps

Why it matters

  • Industry-standard quality check for OpenDRIVE files
  • Catches structural and compliance issues early

Result

  • PASS — Schema is valid and failed checks stay within the allowed limit
  • FAIL — Schema problems or too many failed quality checks

Where to look

  • opendrive_result.xqar — detailed ASAM report
Continuity

What it checks

Smooth connections along each road — no gaps or sudden jumps in:

  • Road centerline geometry (position and heading)
  • Lane offsets
  • Elevation (height and slope)

Why it matters

  • Discontinuities cause visible jumps, wrong lane shapes, or bad elevation in the map and in simulation

Result

  • PASS — No continuity errors (C0/C1 errors)
  • FAIL — One or more continuity errors found

Where to look

  • continuity/error_log.log — list of errors
  • continuity/summary_log.log — short summary
  • continuity/error_points.geojson — map locations of problem points
Traffic Simulation

What it checks

  • Basic file validity (readable XML with OpenDRIVE root)
  • Road geometry is complete and usable:
    • Roads have a plan view and geometry
    • Geometry parameters (lines, arcs, spirals) are valid
    • Roads meet minimum length requirements
  • Lane layout and junction references are correct
  • Connections between roads at junctions:
    • Linked road geometry aligns
    • Surface overlap at connections
    • Endpoints do not penetrate into the wrong road surface

Why it matters

  • The map must pass these checks to run reliably in traffic simulation

Result

  • PASS — No errors
  • FAIL — One or more errors (warnings may still be reported)

Where to look

  • traffic_simulation/validation_result.json
Additional Validation

What it checks

Extra data-quality rules for RepliMap maps:

  • Valid OpenDRIVE root element
  • Numeric values are valid (no invalid or non-finite numbers)
  • Station values (s, sOffset) are not negative
  • Object IDs are unique
  • Signal IDs are unique
  • No duplicate placement of static objects
  • Poles or street lights should not sit on driving lanes (warning)

Why it matters

  • Catches data issues not covered by the other bundles

Result

  • PASS — No errors and no warnings
  • FAIL — Any error or warning

Where to look

  • internal/additional_validation.log
  • internal/validation_result.json

Overall Result

The master summary is saved to master_validation.log.

Overall PASS currently requires:

Bundle Required
ASAM QC OpenDRIVE PASS
Traffic Simulation PASS

Continuity and Additional Validation are still run and reported. Fix their issues even when the overall result is PASS, so map quality is complete.

Viewing & Exporting Reports

After validation, the Map Validator tab opens automatically in the console.

  1. Open the Console.
  2. Select the Map Validator tab.
  3. Click Export and choose a save location.

The exported .txt file contains the full validation report for review, troubleshooting, or sharing with your team.

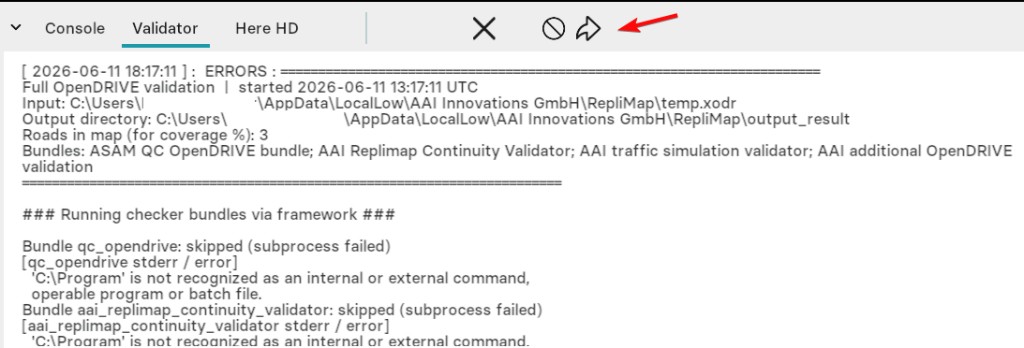

Validator tab with validation log and export icon

Note

Validation results are also saved in the output directory. View the full report in the output_result file.
