Tunnel

The Tunnel Tool is used to add tunnels to the road scene.

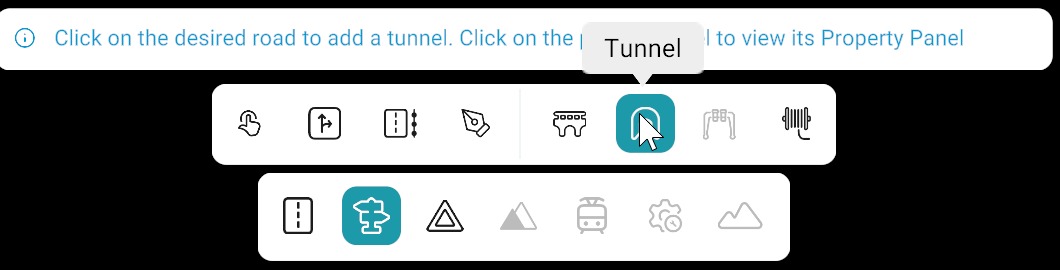

Object bar: Tunnel tool selected with placement hint; bottom toolbar with Objects category active

Adding a Tunnel

  1. Select the Tunnel Tool.
  2. Left-click on the desired road location.
  3. The tunnel is automatically placed at the selected position.

Tunnel Properties Panel

Right-click on a tunnel to open the Tunnel Properties Panel. This panel allows modification of the tunnel properties.

Property Description
Type Specifies the tunnel type
S Defines the starting position of the tunnel along the road
Length Defines how far the tunnel extends

Lane Validity

Specifies which lanes the tunnel applies to on the road. Use + to add lane validity rules and limit the tunnel to selected lanes.

When a rule is added, open the Edit Lane dialog. Set From Lane and To Lane to define the lane range, then click Apply.

Edit Lane dialog: From Lane, To Lane, and Apply

Delete Tunnel

The Delete Tunnel option removes the selected tunnel from the scene.

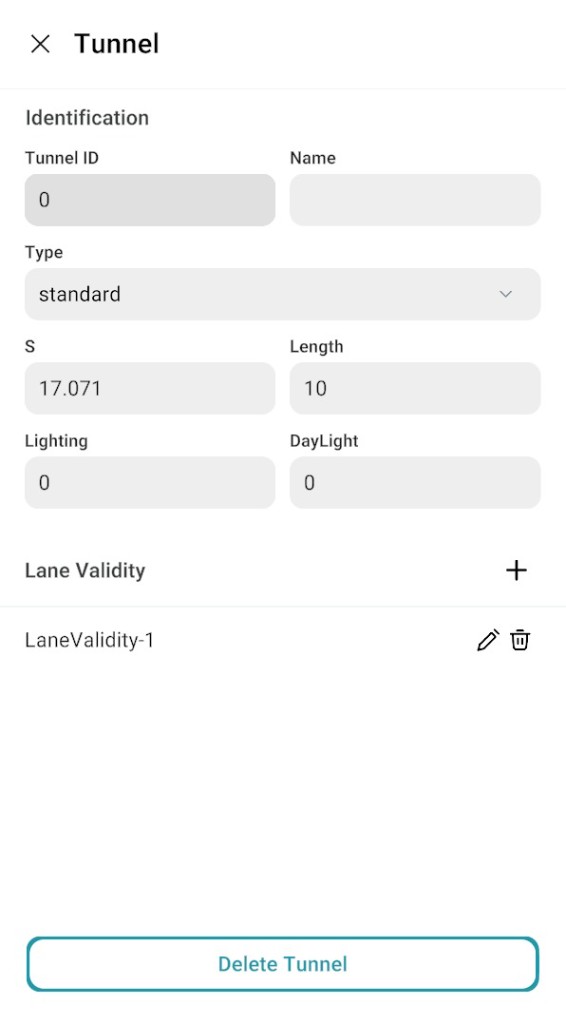

Tunnel properties panel screenshot
