Lane Properties Panel

When you select a lane on the canvas (typically by triple-clicking the road), the Lane Properties panel opens on the right side of the editor.

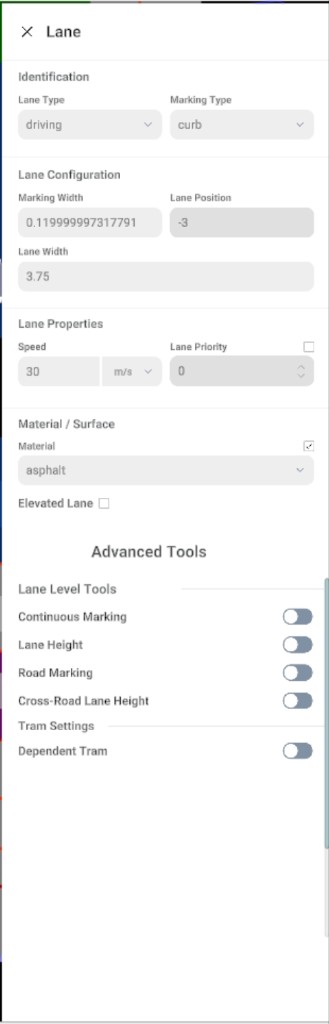

Lane properties panel screenshot

Lane properties sidebar: identification, lane width, speed, material, advanced toggles

Sections in the Panel

Identification

Field Purpose
Lane type Role of the lane (for example driving, sidewalk, bus).
Marking type Boundary style toward the adjacent lane or shoulder (for example curb, line style).

Lane Configuration

Field Purpose
Marking width Width of the marking strip at the lane boundary (when applicable).
Lane position OpenDRIVE lane index relative to the reference line (often read-only).
Lane width Width at the current edit context; detailed width-along-road behaviour is covered under Width tags.

Lane Properties and Surface

Field Purpose
Speed Design speed with unit (for example m/s).
Lane priority Priority hint for routing or simulation.
Material Surface type (for example asphalt).
Elevated lane When enabled, marks elevated or bridge-style lane behaviour.

Advanced Tools

Optional toggles include lane height, road marking, and tram-related options.
