Adjust Z

The Adjust Z tool allows users to adjust the elevation of all connecting roads within a selected junction. The specified Z value is added to the existing elevation of each connecting road.

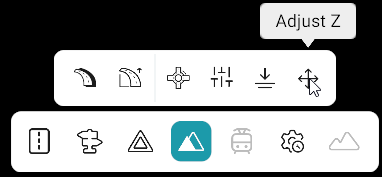

Bottom toolbar: Elevation Tools category active; sub-toolbar with Adjust Z tool selected

Warning

When creating a map from scratch, the junction/Junction ID will not appear until the map is saved.

Select a Junction

  1. Click Elevation Tools.
  2. Select Adjust Z from the toolbar.
  3. Click any road that is part of the required junction.
  4. The Junction panel opens on the left side of the screen.

Adjust the Z Value

  1. Enter the required Z value.
  2. Click Adjust Z.
  3. The specified Z value is added to the existing elevation of all connecting roads in the selected junction.

Reset the Elevation

  1. Click Reset.
  2. The elevation values are restored to their values before the Z adjustment.

Tool Actions

Action Description
Adjust Z Adds the specified Z value to the existing elevation of all connecting roads in the selected junction.
Reset Restores the elevation values from before the Z adjustment.

Notes

  • The required junction can be searched using the Junction ID search bar in the left-side Junction panel.
  • Adjust Z applies to the entire selected junction.
  • The specified Z value is added to the existing elevation of all connecting roads in the selected junction.
  • Reset restores the elevation values from before the Z adjustment.
