HERE to OpenDRIVE (XODR)

The HERE to XODR pipeline converts HERE source data into ASAM OpenDRIVE (.xodr) inside RepliMap.

Current pipeline scope:

  • Supports HERE HD Live Maps input.
  • Converts road geometry and traffic signs layers (including elevation handling in the generated road model).
  • Is designed to be extendable to additional layers in future releases.

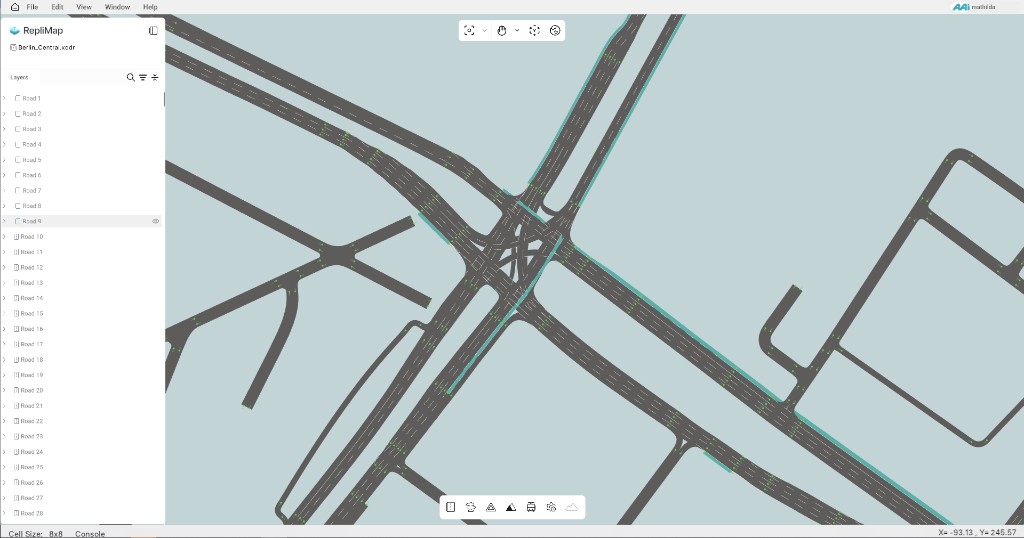

Automated HERE to XODR conversion result shown on the main canvas

Credentials and coverage required

RepliMap does not include default HERE licenses or API keys.
You must provide valid HERE credentials and ensure your account has area coverage for the region you want to convert.

Before You Run Conversion

Prepare the following:

  1. HERE credentials (API/user/client/access keys required by your deployment).
  2. Area definition in GeoJSON for the region to convert.
  3. Output folder where RepliMap should write the generated map files.

You can create the area polygon quickly with geojson.io and save it as a .geojson file.

How It Works

In the conversion flow:

  1. Enter your HERE credentials.
  2. Select the input .geojson area file.
  3. Select the output folder for converted map data.
  4. Start conversion.

RepliMap then fetches HERE data for the selected bounds, runs conversion, and applies internal geometry optimization/fixes.

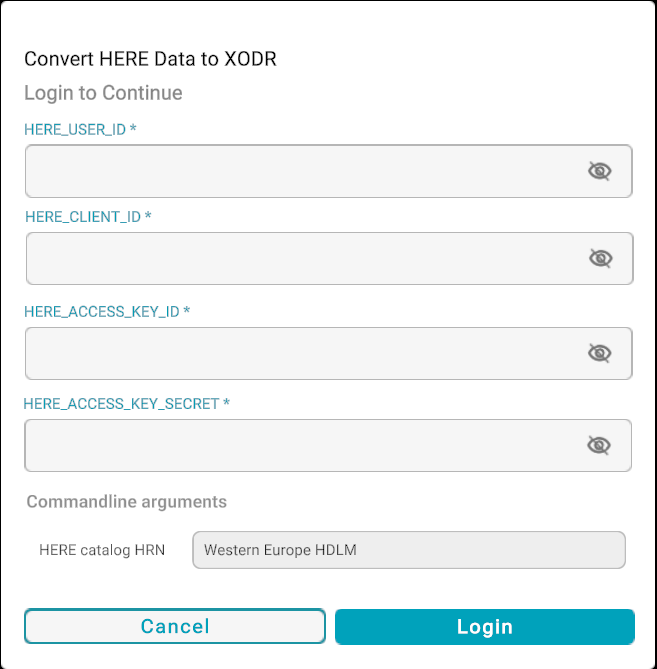

HERE credentials dialog for HERE to XODR conversion

Conversion Behavior and Quality Notes

  • Conversion can take time because it includes data fetch, conversion, and post-processing.
  • The map output on the main canvas is fully automated (no manual intervention required during generation).
  • Generated maps may still contain minor imperfections (for example small mesh overlaps or local gaps).
  • The pipeline aims for continuous drivable geometry, but some errors are expected depending on source data and bounds.

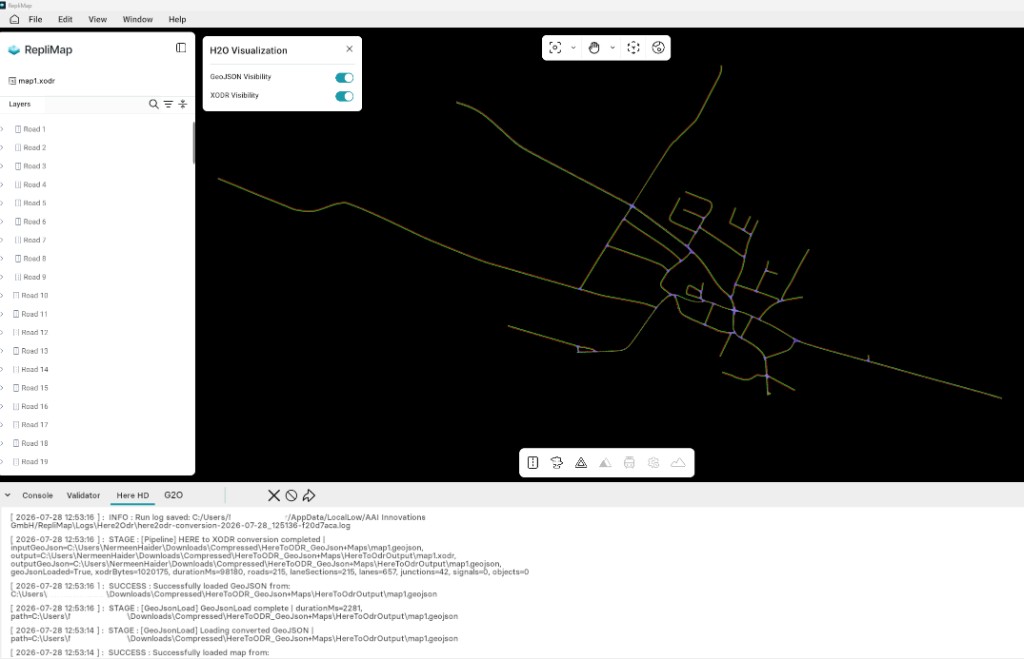

After conversion, the map is loaded directly into the canvas. You can then use RepliMap tools to review, fix, and further enhance roads, signs, and other elements.

Here-to-ODR Console — Log Export

The Here-to-ODR conversion console provides a dedicated logging panel that records the complete conversion workflow. It helps users analyze processing behavior, detect lagging issues, and review system activity during conversion.

Users can export the log file using the Right Arrow icon available in the console panel. This generates a text-based log file, and the user can select the desired location for saving it.

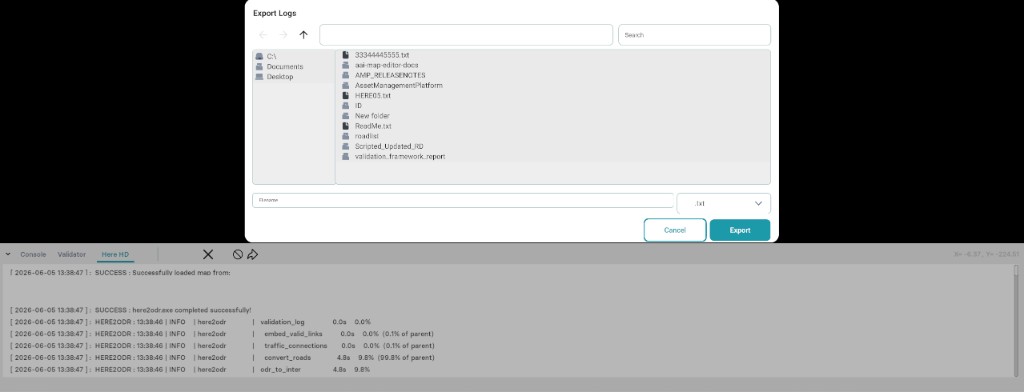

Here-to-ODR console with conversion logs and Export Logs save dialog

The export process also displays:

  • Total processing time consumed during conversion
  • Export completion status

Log Content Included in Export

The exported log file contains the following key sections:

Logs Description
Pipeline Logs Records step-by-step execution of the conversion pipeline, showing the processing flow and intermediate stages.
Profile Report Logs Contains detailed profile-level information, including execution tracking and reference to the profile report path. The related JSON files can be accessed from this path.
Warning Logs Displays system warnings generated during conversion, helping identify potential issues or irregular behavior.

Additional Export Information

Includes supplementary details such as:

  • Profile report path stored in a reference text file within the exported log, used to locate detailed JSON-based logs.
  • Authentication credentials status shown at the end of the exported log file for verification purposes.

File Handling & Naming Behavior

Users must use a unique GeoJSON file name during conversion.

If a file with the same name already exists in the selected export folder:

  • The system will automatically overwrite the existing file.
  • It is recommended to avoid duplicate naming to prevent accidental data replacement.

Notes

  • Log export is intended for debugging, validation, and performance analysis.
  • It is recommended to review logs when:
    • Conversion is slow or lagging
    • Unexpected warnings or issues occur
  • Always verify the export location before saving the file.
  • Maintain unique file names for each conversion to ensure data integrity.
