Smoothen Junction

The Smoothen Junction tool allows users to smooth the elevation of roads within a junction. It adjusts the elevation of the connecting roads to create a smoother elevation transition within the junction.

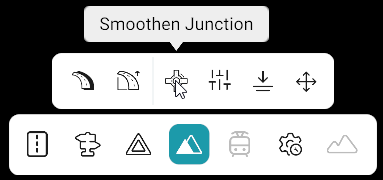

Bottom toolbar: Elevation Tools category active; sub-toolbar with Smoothen Junction tool selected

Warning

When creating a map from scratch, the junction/Junction ID will not appear until the map is saved.

Open the Smoothen Junction Tool

  1. Click Elevation Tools.
  2. Click a road in the junction.
  3. Select Smoothen Junction.
  4. Click any road that is part of the junction.
  5. The Junction panel opens on the left side of the screen.
  6. All roads present in the junction are listed in the Junction panel.
  7. Click a Road ID in the Junction panel to highlight the corresponding road on the map.

Smoothen Junction Elevation

  1. Click Smoothen.
  2. The elevation of all roads present in the junction is smoothed to create a smoother transition between the connecting roads.

Reset the Elevation

  1. Click Reset.
  2. The elevation is restored to the value that was present before the smoothing operation was applied.

Tool Actions

Action Description
Smoothen Smooths the elevation of all roads present in the junction to create a smoother elevation transition.
Reset Restores the elevation to the value that was present before smoothing was applied.

Notes

  • Selecting a Road ID from the Junction panel only highlights the corresponding road on the map; it does not limit the smoothing operation to that road.
  • Reset does not reset the elevation to 0. It restores the elevation value from before the smoothing operation.
  • The required junction can be searched using the Junction ID search bar in the left-side Junction panel.
  • Smoothen applies to the entire selected junction.
