Bridge

The Bridge Tool is used to add bridges to the road scene.

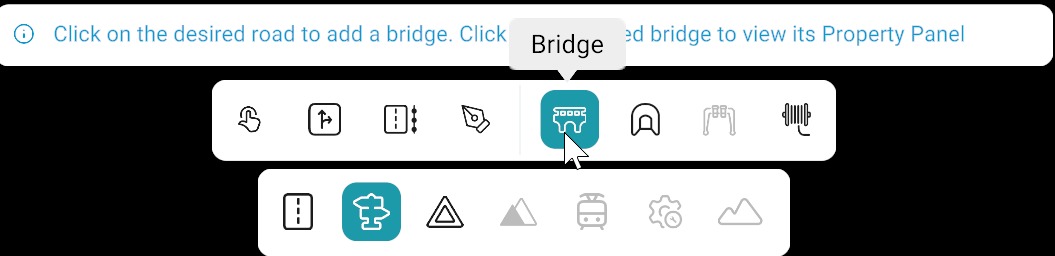

Object bar: Bridge tool selected with placement hint; bottom toolbar with Objects category active

Adding a Bridge

  1. Select the Bridge Tool.
  2. Left-click on the desired road location.
  3. The bridge is automatically placed at the selected position.

Bridge Properties Panel

Right-click on a bridge to open the Bridge Properties Panel. This panel allows modification of the bridge properties.

Property Description
S Defines the starting position of the bridge along the road
Length Controls the total length of the bridge
Type Specifies the bridge material or style (for example, concrete)

Lane Validity

Specifies which lanes the bridge applies to on the road. Use + to add lane validity rules and limit the bridge to selected lanes.

When a rule is added, open the Edit Lane dialog. Set From Lane and To Lane to define the lane range, then click Apply.

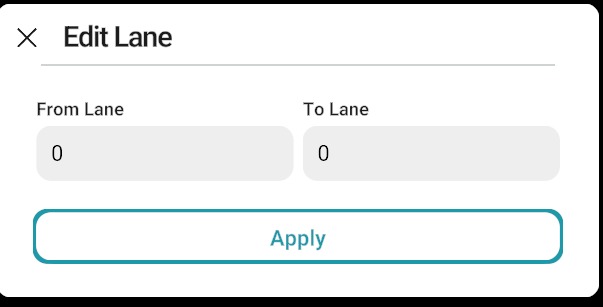

Edit Lane dialog: From Lane, To Lane, and Apply

Delete Bridge

The Delete Bridge option removes the selected bridge from the scene.

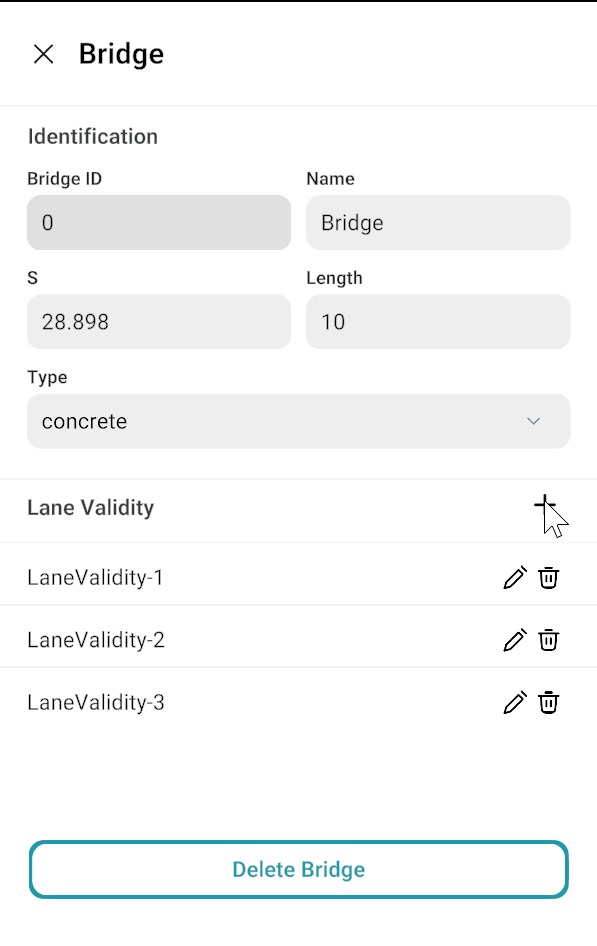

Bridge properties panel screenshot

Bridge Properties panel: Identification, Parameters, Lane Validity, and Delete Bridge
