Flatten Junction

The Flatten Junction tool allows users to flatten the elevation of roads within a junction. It adjusts the elevation of the connecting roads to create a flat elevation across the junction.

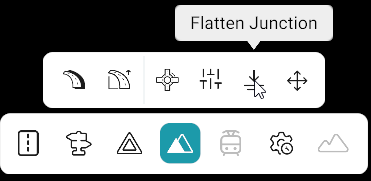

Bottom toolbar: Elevation Tools category active; sub-toolbar with Flatten Junction tool selected

Warning

When creating a map from scratch, the junction/Junction ID will not appear until the map is saved.

Select the Junction

  1. Click Elevation Tools.
  2. Click a road in the junction.
  3. Select Flatten Junction.
  4. Click any road that is part of the junction.
  5. The Junction panel opens on the left side of the screen.
  6. All roads present in the junction are listed in the Junction panel.
  7. Click a Road ID in the Junction panel to highlight the corresponding road on the map.

Flatten the Junction

  1. Click Flatten.
  2. The elevation of all roads present in the junction is flattened to create a flat elevation across the junction.

Reset the Elevation

  1. Click Reset.
  2. The elevation is restored to the value that was present before the flattening operation was applied.

Tool Actions

Action Description
Flatten Flattens the elevation of all roads present in the junction.
Reset Restores the elevation to the value that was present before flattening was applied.

Notes

  • Selecting a Road ID from the Junction panel only highlights the corresponding road on the map; it does not limit the flattening operation to that road.
  • Reset does not reset the elevation to 0. It restores the elevation value from before the flattening operation.
  • The required junction can be searched using the Junction ID search bar in the left-side Junction panel.
  • Flatten applies to the entire selected junction.
